750KVA A Insulation Class Oil Immersed Distribution Transformer for Smooth Power Distribution

Product Description:

One of the key features of this Oil Immersed Power Transformer is its cooling method, known as ONAN (Oil Natural Air Natural). This cooling system utilizes the natural convection of oil and air to dissipate heat generated during the transformer's operation, ensuring optimal performance and longevity.

With an insulation class of A, this Oil Immersed Power Transformer is built to withstand high temperatures and electrical stress, providing a reliable and safe operation in various environments. The insulation class A indicates that the transformer can effectively handle temperature fluctuations and maintain insulation integrity under demanding conditions.

Designed with a connection group of YNd11, this Oil Immersed Power Transformer offers a versatile and efficient solution for electrical power distribution. The YNd11 connection group configuration ensures balanced voltage transformation and reliable performance, making it suitable for a wide range of applications.

The rated voltage of this Oil Immersed Power Transformer is 13800/480 V, making it ideal for stepping down high-voltage electricity for distribution to residential, commercial, and industrial facilities. With this rated voltage capacity, the transformer can efficiently convert electricity to meet the specific voltage requirements of different electrical systems.

Operating within an ambient temperature of 28℃, this Oil Immersed Power Transformer demonstrates excellent thermal performance and reliability in moderate temperature conditions. The transformer is designed to operate efficiently and effectively within the specified ambient temperature range, ensuring stable and consistent electrical output.

In summary, the Oil Immersed Power Transformer is a robust and versatile electrical device that offers efficient voltage transformation and distribution capabilities. With its ONAN cooling method, insulation class A, YNd11 connection group, rated voltage of 13800/480 V, and suitability for operation at an ambient temperature of 28℃, this transformer is a reliable solution for various power distribution needs.

Features:

• Product Name: Oil Immersed Power Transformer
• Rated capacity: 750KVA
• Rated current: 31.4/902.1 A
• Type: S-M-750/13.8-0.48
• Oil grade: 25# Oil
• Cooling method: ONAN

Technical Parameters:

Applications:

Oil Immersed Power Transformers, such as the Oil-immersed transformer model S-M-750/13.8-0.48, are versatile electrical devices that find application in various occasions and scenarios due to their unique attributes.

One primary application scenario for Oil Immersed Transformers is in industrial settings, where they are used for power distribution and voltage transformation. These transformers are commonly employed in manufacturing plants, refineries, and other industrial facilities to ensure a stable and reliable power supply.

Another important application occasion for Oil Immersed Transformers is in commercial buildings and infrastructure projects. These transformers play a crucial role in ensuring a continuous supply of electricity to office buildings, shopping malls, hospitals, and other commercial establishments.

Oil Immersed Distribution Transformers, such as the S-M-750/13.8-0.48 model, are also widely used in the utility sector for power transmission and distribution. These transformers help regulate voltage levels and ensure efficient power delivery to residential areas, substations, and other utility infrastructure.

Due to their high-quality construction and reliable performance, Oil Immersed Transformers with GB certification are preferred in critical applications where safety and efficiency are paramount. The insulation class A and cooling method ONAN ensure optimal performance even in challenging environments with an ambient temperature of 28℃.

Furthermore, the tapping range of ±2x2.5% allows for fine voltage adjustments, making Oil Immersed Transformers suitable for a wide range of operating conditions. The use of 25# Oil grade ensures efficient cooling and insulation properties, further enhancing the reliability and longevity of these transformers.

Whether in industrial, commercial, or utility settings, Oil Immersed Power Transformers offer a dependable solution for power distribution and voltage transformation needs. With their robust design, efficient cooling system, and high-quality insulation, these transformers are an essential component of modern electrical systems.

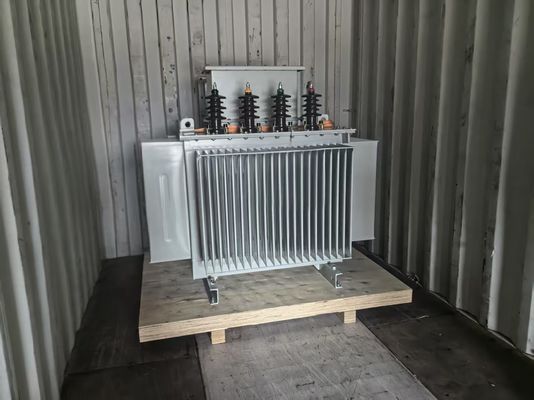

When it comes to packaging and transportation, these transformers are carefully packaged on wooden pallets to ensure safe handling and delivery to their destination. Manufactured in CHINA, these Oil Immersed Transformers uphold the highest standards of quality and performance, making them a trusted choice for various application scenarios.

Customization:

Product Customization Services for Oil Immersed Power Transformer:

• Brand Name: Oil Immersed Transformer
• Model Number: S-M-750/13.8-0.48
• Place of Origin: CHINA
• Certification: GB
• Packaging Details: WOODEN PALLET
• Rated capacity: 750KVA
• Rated voltage: 13800/480 V
• Cooling method: ONAN
• Ambient temperature: 28℃
• Rated current: 31.4/902.1 A

Support and Services:

Our Oil Immersed Power Transformer product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our expert team is available to provide assistance with installation, operation, and maintenance of the transformer. Additionally, we offer troubleshooting guidance, on-site inspections, and remote diagnostic services to address any issues that may arise.

Packing and Shipping:

Product Packaging:

The Oil Immersed Power Transformer is carefully packaged in a sturdy wooden crate to ensure safe transportation. The transformer is securely fixed inside the crate with proper cushioning to prevent any damage during transit.

Shipping:

We offer reliable shipping services for the Oil Immersed Power Transformer product. The transformer will be shipped using a reputable carrier to ensure prompt and safe delivery to your specified location. Our team will handle all necessary paperwork and logistics to expedite the shipping process.
